EC&M & SQUARE-D
INDUSTRIAL BRAKE REPLACEMENT PARTS

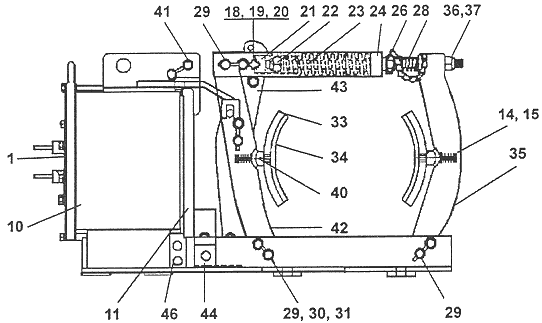

CLASS 5010 13" TYPE F SERIES B




  ITEM     OEM PART     DESCRIPTION
1
4
5
6
8
10
11
12
13
14
18
19
20
20
21
22
23
24
25
28
29
30
33
34
35
36
40
41
42
43
44
45
46
60
62
63
68
69
71
72
73
74
75
76
77
78
50905-223-01
50905-167-01
50905-168-01
29206-00550
21008-06120
50905-218-50
50905-215-50
29005-56404
50905-140-50
50901-010-07
50903-407-03
29907-03210
50901-010-06
50905-136-50
50905-117-50
W-13045
W-13020
50905-137-50
50905-141-01
50901-010-08
50903-401-08
50903-402-01
50905-101-50
50903-808-53
50905-127-50
50903411-51
50903404-01
50903-401-07
50905-129-50
50905-119-50
50905-115-50
50903401-09
50904-226-01
50903-805-53
50905-158-01
29013-02120
29005-24121
29005-32221
50905-164-50
50905-160-01
50903-415-02
50906-165-50
21601-24660
50901-003-03
50905-154-50
50904-161-01
Magnet Case Cover
Terminal Shield
Lead Bushing
"O" Ring
Drive Screw
Magnet Case & Base Assembly
Armature
Bearing
Centering Bracket
Centering Bracket Spring
Latch Pin
"E" Ring
Latch Pin Spring
Manual Release Nut
Connecting Rod Assembly
Spring Collar
Operating Spring
Yoke
Calibration Plate
Connecting Rod Spring
Pin
Locking Pin
Shoe Assembly, Includes Lining
Shoe Lining Kit
Outboard Shoe Lever
Elastic Stop Nut Assembly
Lining Wear Indicator
Pin
Inboard Shoe Lever
Connecting Rod Lever
Connecting Link
Pin
Armature Gap Indicator
Self-adjusting Shoe Mechanism
Connecting Rod
Connecting Rod Bearing
Bearing
Oilite Bearing
Crank Assembly
Ratchet Rod
Crank Pin
Ratchet Rod End Block
Socket Head Screw
Spring
Star Wheel Stop Nut Assembly
Ratchet Rod Guide
