EC&M & SQUARE-D
INDUSTRIAL BRAKE REPLACEMENT PARTS

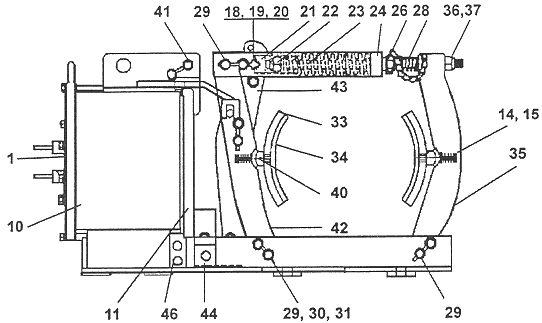

CLASS 5010 10" TYPE F SERIES B

ITEM	OEM PART	DESCRIPTION
1 4 5 6 8 10 11 12 13 14 18 19 20 21 22 23 24 24 26 28 29 30 33 34 35 36 38 40 41 42 43 44 45 46 60 62 63 68 71 72 73 74 75 76 77 78 80	50904-223-01 50904-167-01 50904-166-01 29206-00430 21008-06120 50904-218-50 50904-215-50 29005-48240 50904-140-50 50901-010-02 50903-407-01 29907-02410 50901-010-09 50904-117-50 W-10045 W-10020 50904-137-50 50904-141-01 50904-136-50 50901-010-01 50903-401-02 50903-402-01 50904-101-50 50903-808-52 50904-127-50 50903-411-50 50902-010-03 50903-404-04 50903-401-01 50904-129-50 50904-119-50 50904-115-50 50903401-03 50904-226-01 50903-805-52 50904-158-01 29013-02120 29005-24121 50904-164-50 50904-160-01 50903-415-01 50906-165-50 21601-24660 50901-003-01 50904-154-50 50904-161-01 29005-32221	Magnet Case Terminal Shield Lead Bushing "O" Ring Drive Screw Magnet Case & Base Assembly Armature Bearing Centering Bracket Assy Centering Bracket Spring Latch Pin "E" Ring Latch Pin Spring Connecting Rod Assembly Spring Collar Operating Spring Yoke Calibration Plate Manual Release Nut Connecting Rod Spring Pin Locking Pin Shoe Assembly Shoe Lining Kit Outboard Shoe Lever Nut and Washer Assembly Shoe Mounting Spring Lining Wear Indicator Pin Inboard Shoe Lever Connecting Rod Lever Connecting Link Pin Armature Gap Indicator Self-Adj. Shoe Mechanism Kit Connecting Rod Connecting Rod Bearing Bearing Crank Assembly Ratchet Rod Crank Pin Ratchet Rod End Block Socket Head Screw Spring Star Wheel Stop Nut Assembly Ratchet Rod Guide Oilite Bearing
