General Electric IC9528 Brake
A100, 8" A101, 10" A102, 13" A103, 16" A104, 19" A105, 23"

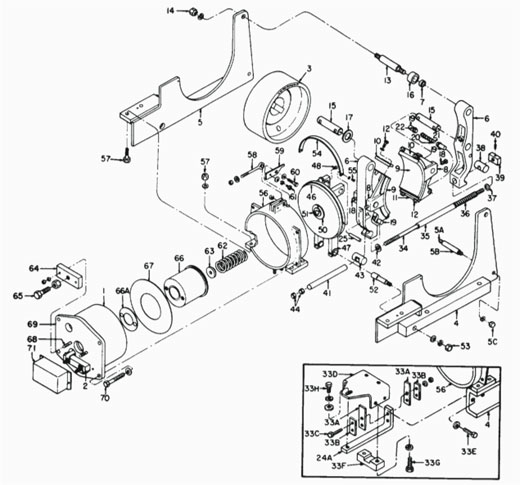

IC9528 A103 16” Brake

01.....1D179G1..............Shunt Coil
01.....1D179G106..........Coil
01.....1D179G110..........Coil
01.....1D179G1A ...........Coil
01.....1D179G103..........Coil
01.....1D179G100..........Coil
01.....1D179G107..........Coil
01.....1D179G108..........Coil
01.....1D179G109..........Coil
01.....1D179G101..........Coil
01.....1D179G105..........Coil
01.....1D179G104..........Coil
01.....1D179G102..........Coil
02.....229B781G10 ........Terminal Board
04.....171C247G17 ........Frame Front
05.....171C247G18 ........Frame Rear
05A ..282A872P4 ...........Tie Stud
05B ..229B790P10 .........Spacer
06.....171C266G22 ........Yoke With Bushings
07.....573A608P5 ...........Bushing for Yoke
08.....171C219P1 ...........Brake Shoe
09.....305A4800P4 .........Lining And Support Plate Assy.
10.....282A875P10 .........Clamp for Lining
11.....282A875P4 ...........Clamp for Lining
12.....N93P29016 ..........Screw
13.....287A121P4 ...........Bearing Pin For RH Yoke
14.....N200P39 ..............Nut For Bearing Pin
15.....287A122P4 ...........Bearing Pin For LH Yoke
16.....282A763P3 ...........Seal
17.....282A770P9 ...........Thrust Washer
18.....577A124P3 ...........Set Screw for Brake Shoe
19.....282A862P4 ...........Friction Plug for Brake Shoe
21.....282A860P14 .........Guide Pin For Spring
22.....N908P227B ..........Retain Ring for Friction Plug
24A ..138A1173P4 .........Pivot Arm for Yoke
25.....287A120P4 ...........Pivot Pin For Yoke
33A ..138A1174P4 .........Spring Strip for Pivot Arm
33B ..138A1178P4 .........Backing Strip
33C ..N22P25032B6 ......Screw Fastening Spring Strip
33D .104B9965P4 .........Support for Pivot Arm
33e ...N21P29020 ..........Adjusting Screw for Pivot Arm
33F ..138A1175P4 .........Guide for Pivot Arm
33g ...N21P29024 ..........Adj. Screw for Pivot Arm
33h ..N21P29024 ..........Adj. Screw for Pivot Arm
34.....104B9964P4 .........Tie Rod
35.....577A142P20 .........Spacer for Tie Rod
36.....5144483P1 ...........Compression Spring
37.....N402AP50B6 .......Spring Seat
38.....285A839P4 ...........Rocker Pin
39.....233B565P4 ...........Nut for Tie Rod
40.....N70P2110B6 ........Set Screw
41.....577A129P28 .........Tube
42.....282A770P13 .........Washer
43.....287A125P4 ...........Stainless Steel Rocker Pin
43.....138A1176P4 .........Rocker Pin
43.....138A1191P4 .........Stainless Steel Rocker Pin
44.....N227P82 ..............Tie Rod Nut
46.....229B796G4 ..........Armature with Bushings
47.....573A608P11 .........Bushing for Armature
48.....577A124P3 ...........Set Screw for Brake Shoe
50.....282A765P1 ...........Spring Seat
51.....N21P29020 ..........Adjusting Screw for Pivot Arm
52.....323A1972P4 .........Bearing Pin
52.....N910P137C6........E Ring
53.....N200P39 ..............Nut For Bearing Pin
54.....282A775P4 ...........Dust Cap
55.....N57P21008B ........Screw
56.....111C9017P1 .........Magnet Frame
57.....577A190P4 ...........Screw
58.....282A867P2 ...........Manual-Release Rod
59.....282A766P1 ...........Armature Gap Indicator
60.....N22P29040B6 ......Hinge Screw
61.....N530P1008B6 ......Drive Screw
62.....5144467P1 ...........Torque Spring
63.....282A886P4 ...........Spring Seat
64.....282A753P1 ...........Retainer
65.....282A768P4 ...........Adjusting Screw
66.....978B347P2 ...........Magnet Core
66A ..282A852P2 ...........Shim
67.....282A859P4 ...........Retainer for Magnet Coil
68.....282A861P8 ...........Stud for Magnet Core
69.....394B561P1 ...........Back Plate, Outer
69.....394B588P1 ...........Back Plate, Inner
70.....N93P35076 ..........Screw
71.....218A6420G3 ........Conduit Cover
* .......139B8693G1 ........Torque Gauge Assy.
