General Electric IC9528 Brake
A100, 8" A101, 10" A102, 13" A103, 16" A104, 19" A105, 23"

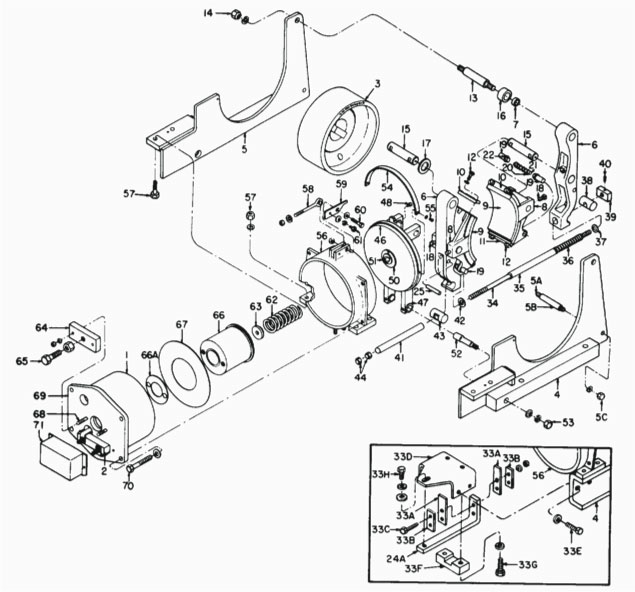

IC9528 A101 10” Brake

01.....1D177G110..........Coil, 25-33 HP
01.....1D177G112..........Coil
01.....F1D177G1A .........Coil
01.....1D177G107..........Series Coil, 15-19 HP
01.....1D177G111..........Coil, 30-39 HP
01.....1D177G100..........Coil
01.....1D177G101..........Coil
01.....1D177G102..........Coil
01.....1D177G103..........Coil
01.....1D177G104..........Coil
01.....1D177G106..........Coil
01.....1D177G108..........Coil
01.....1D177G109..........Coil
01.....1D177G105..........Series Coil
04.....171C262G21 ........Frame, Front
05.....171C262G22 ........Frame Rear
05A ..N22P29088B ........Tie Bolt
05B ..229B790P2 ...........Spacer for Tie Stud
06.....171C266G20 ........Yoke With Bushings
07.....573A608P2 ...........Bushing for Yoke
08.....171C215P1 ...........Brake Shoe
09.....305A4800P2 .........Bonded Lining & Support Plate
10.....282A875P8 ...........Clamp for Lining, Upper
11.....282A875P2 ...........Clamp for Lining, Lower
12.....N93P23012 ..........Screw
13.....287A121P2 ...........Bearing Pin For RH Yoke, SS
14.....N200P29 ..............Nut For Bearing Pin
15.....287A122P2 ...........Bearing Pin For LH Yoke
16.....282A763P1 ...........Seal
17.....282A770P7 ...........Thrust Washer
18.....577A124P1 ...........Set Screw for Brake Shoe
19.....282A862P2 ...........Friction Plug for Brake Shoe
20.....2418892P1 ...........Spring For Friction Plug
21.....282A869P12 .........Guide Pin for Spring
22.....N908P221B ..........Retaining Ring/Friction Plug
24A ..138A1173P2 .........Pivot Arm for Yoke
25.....287A120P2 ...........Pivot Pin For Yoke
33A ..138A1174P2 .........Spring Strip for Pivot Arm
33B ..138A1178P2 .........Backing Strip
33C ..N22P23020B6 ......Screw Fastening Spring Strip
33D .104B9965P2 .........Support for Pivot Arm
33E ..N25P23012 ..........Screw
33F ..138A1175P2 .........Guide for Pivot Arm
33G ..N21P23020 ..........Screw
33H .N21P25020 ..........Adjusting Screw
34.....104B9964P2 .........Tie Rod
35.....577A142P18 .........Spacer for Tie Rod
36.....5144474P1 ...........Compression Spring
37.....N402AP17B6 .......Spring Seat
38.....285A839P2 ...........Rocker Pin for Tie Rod
38.....287A125P2 ...........Stainless Steel Rocker Pin
39.....233B565P2 ...........Nut for Tie Rod
40.....N70P1601B6 ........Set Screw
41.....577A129P8 ...........Tube
42.....N402AP17B6 .......Spring Seat
43.....138A1176P2 .........Rocker Pin
43.....138A1191P2 .........Stainless Steel Rocker Pin
44.....N227P32 ..............Tie Rod Nut
46.....229B796G2 ..........Armature with Bushings
47.....573A608P12 .........Bushing For Armature
48.....577A124P1 ...........Set Screw for Brake Shoe
50.....282A774P1 ...........Spring Seat
51.....N21P25016 ..........Screw
52.....323A1972P2 .........Bearing Pin
53.....N200P29 ..............Nut For Bearing Pin
54.....282A775P2 ...........Dust Cap
55.....N57P21008B ........Screw
56.....111C9013P1 .........Magnet Frame
57.....577A190P2 ...........Screw
58.....282A867P1 ...........Manual-Release Rod
59.....282A772P1 ...........Armature Gap Indicator
60.....N22P25028B6 ......Hinge Screw
61.....N530P806B6 ........Drive Screw
62.....5144472P1 ...........Torque Spring
63.....282A886P2 ...........Spring Seat for Torque Spring
64.....282A751P1 ...........Retainer for Torque Spring
65.....282A768P2 ...........Adj. Screw for Torque Spring
66.....282A873P1 ...........Magnet Core
66A ..282A767P2 ...........Shim between Magnet Core
67.....282A859P2 ...........Retainer for Magnet Coil
68.....282A861P9 ...........Stud for Magnet Core
69.....229B778P1 ...........Back Plate
70.....N93P29056 ..........Screw
71.....218A6420G1 ........Conduit Cover
