503
Type M - 8", 10",
14", 18",
21", 24",
30"
505 D-C - 8", 10",
13", 16",
19", 23",
30"

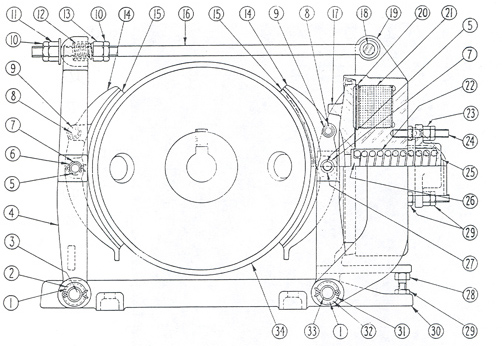

No. 503 10" Type "M" Brake
Item |
OEM
Part |
Description |
| 1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
20
20
21
22
23
24
25
26
27
28
29
30
31
32
33 |
29-468
929-759
913-862
624-489
913-863
29-467
51-211
969-75J
915-1443Z
15-152
69-2806
915-1442Z
623-134
48-338-6
61-136-3
624-441
13-506-9
873-8
630-54
Magnet Coil
69-490
915-1403Z
914-624
3679-89F1
879-3
29-467
911-444
915-1401Z
17-710-2
929-759
929-760
913-861 |
Base
Bushing
Shoe Lever Bushing
Pin (For Shoe Lever)
Shoe Lever w/ Bushings
Pin (For Brake Shoe)
Shoe Lever Bushings
Plug for Aligning Brake Shoe
Spring in Brake Shoe
Nut
Nut
Spring for Pull Rod
Nut
Brake Shoes w/ Lining Assembled
Brake Lining
Pull Rod
Armature Lever w/ Bushings
Pin (For Pull Rod)
Coil Shield
String Babitt
Main Spring
Nut
Stud
Spring Support
Spring Gland
Armature Bushings Only
Adjusting Screw
Nut
Base
Bushing
Armature Bushings (Base)
Pin (For Armature) |
|
|
 |
